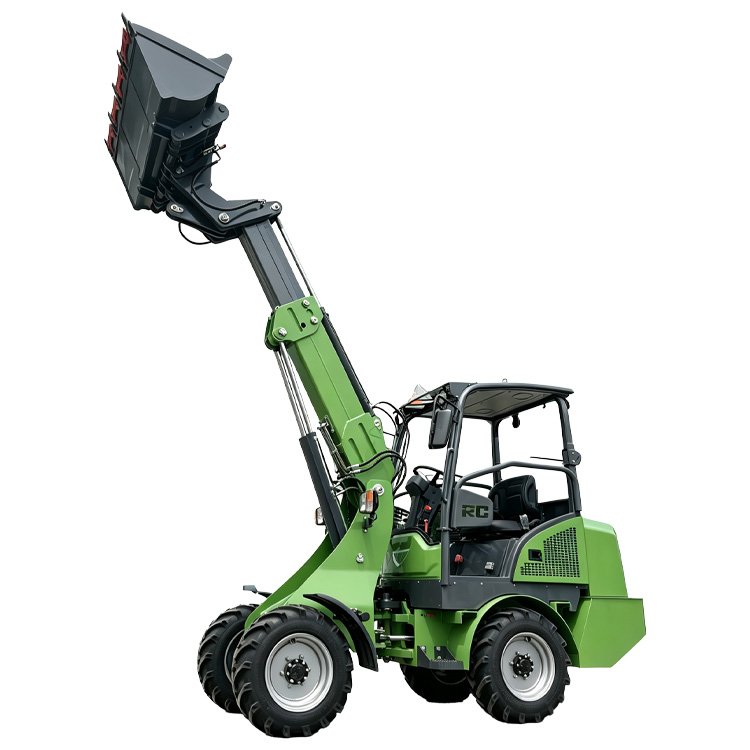

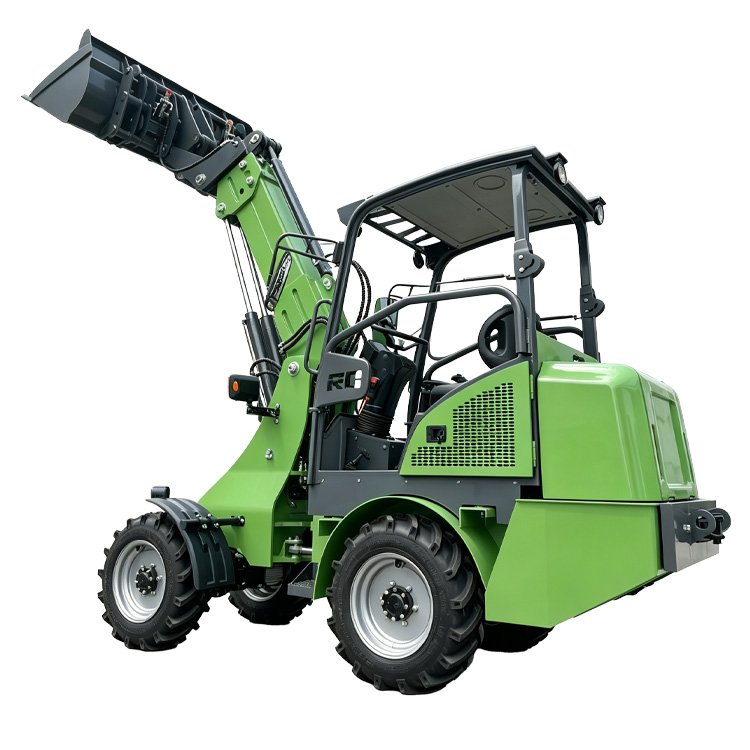

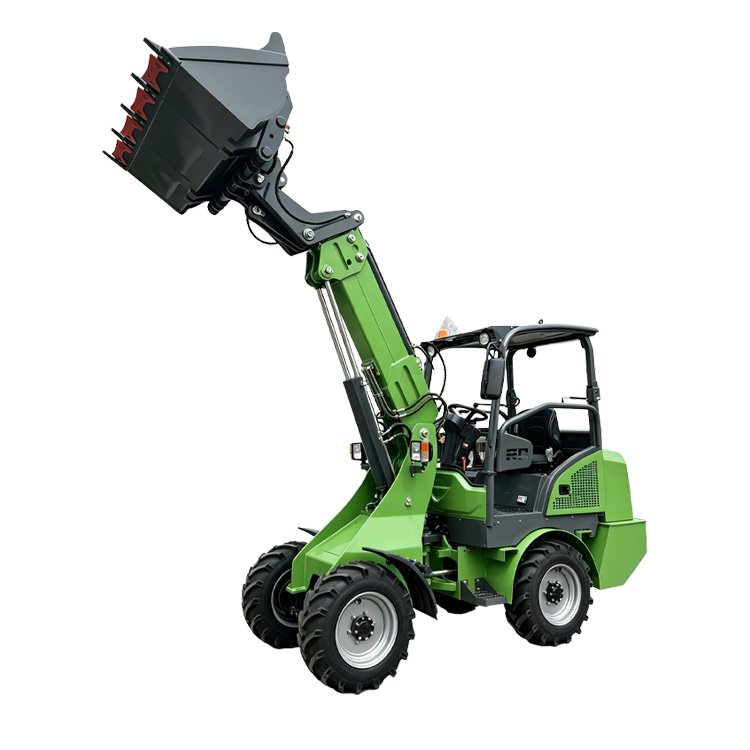

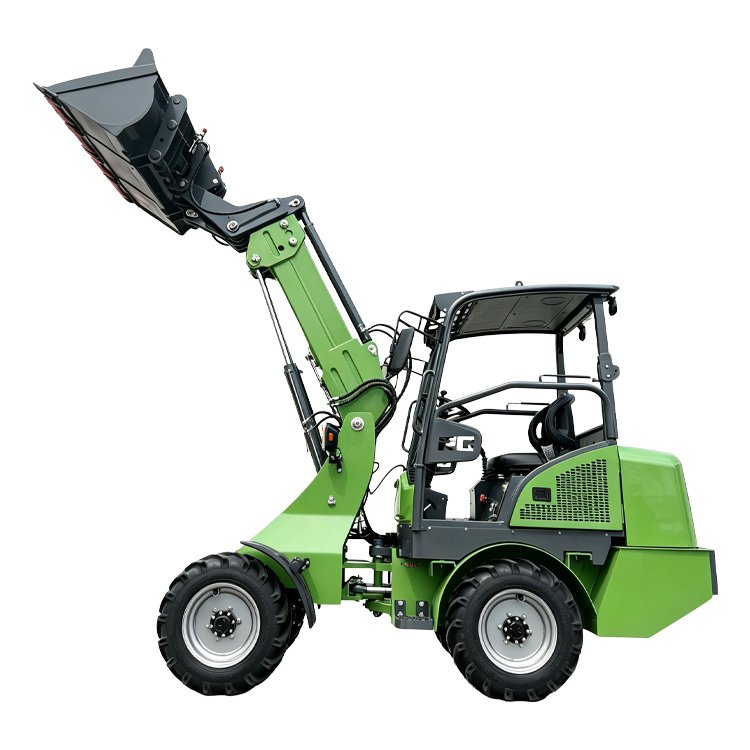

XHD10T electric telescopic loader

Specifications | Descriptions | Technical Parameters

1.Zero-emission & eco-friendly — Pure electric drive, no exhaust, ideal for indoor spaces, warehouses and workshops.
2.Low noise & low energy cost — Quiet motor with precise electronic power control; energy cost well below diesel loaders.
3.Powerful performance — High-torque motor delivers strong acceleration and climbing power even fully loaded.
4.Precise control — Electronic control of bucket and travel speed improves efficiency and reduces material waste.
5.Low maintenance cost — No engine or transmission; fewer parts, no oil or filter changes, less downtime.
6.Safe & stable — Reliable electromagnetic/hydraulic braking; well-balanced design and high-grip tires for tough conditions.

Specifications

Load Capacity

1000kg

Lifting Height

Ext.Length 4350mm

Dump Height

Ext.Length 3150mm

Descriptions

Adjustable steering column

The steering wheel can be adjusted individually according to the operator's preferences, ensuring that each operator can use the machine comfortably and without fatigue in an ergonomic way.

Agricultural engineering deep pattern tires

Deep chevron tread with a wide angle for strong grip — resists slipping on mud, grass, and slippery farm ground; thick and durable, the wide-tread design increases ground contact to avoid crushing lawns, with high wear resistance and anti-aging performance.

Ergonomic joystick

The joystick fits snugly and comfortably in your hand, while remaining stable and responsive to control. This way, you can always have full command over the machine and its key functions.

Ergonomic steering wheel

A power-assist spinner knob mounted on the side of the steering wheel lets you turn the wheel easily with one hand, reducing arm fatigue during long working hours and making frequent turns in tight spaces much less strenuous.

Ergonomic-shaped engineering seat

Ergonomic shaping with good support — the backrest and cushion feature contoured rib lines that hug the curves of the lower back and hips, cushioning long rides over rough ground to ease driver fatigue; wear-resistant and waterproof materials suit harsh working conditions.

The axle uses a fully suspended reinforced design, ensuring a comfortable ride while also providing excellent load capacity.

Hinged connection

The four wheels remain in constant contact with the ground, enabling the machine to have maximum traction and also providing it with unique maneuverability.

Integrated headlight, turn signal, and clearance lamp in one unit, delivering lighting, turning indication, and position warning simultaneously. Fewer standalone lamps mean simplified wiring and easier assembly and maintenance.

Liquid crystal display screen

This vehicle uses a CAN bus to communicate with the digital dashboard, allowing it to accurately show voltage, battery level, driving speed, and fuel pump RPM in real time. It also has warning prompts for wrong operations and can display fault codes.

Loading Towing Capacity

Equipped with a rear towing hitch, it can be used to tow trailers, utility carts, or small material transfer vehicles.

Side-opening battery maintenance compartment

Lockable side panels open for direct access to the battery pack for inspection, without extensive sheet-metal disassembly. Battery inspection, maintenance, and replacement are simple, greatly reducing service time.

Sunshade protection canopy

> Reinforced guard frame welded from thick steel tubing provides falling-object protection, shielding the operator from rocks or materials dropping from above during operation for enhanced driver safety.

Telescopic boom design

Telescopic boom extends to reach much farther distances, offering a clear advantage in warehouse stacking, orchard work, and high-level loading scenarios — no need to frequently reposition the whole machine, boosting working efficiency.

Technical Parameters

FEATURE

SIZE / DETAILS

Performance
Rated Load (T) 1
Bucket rated capacity (m³) 0.45
Dumping height (MM) 2450/3150
Lifting Height (MM) 3680/4350
Dumping Reach (MM) 800/1200
Max. Lifting weight (KG) 1000/500
Max. Excavation Force (KG) 1100/600
Max. Grade ability (°) 18
Max. Turning Angel (°) 29±1
Dimensions & Weight
Overall length (MM) 4580
Overall width (MM) 1260/1300
Overall Height (MM) 2450
Wheelbase (MM) 1580
Tire spacing (MM) 1000
Min Ground Clearance (MM) 215
Net Weight (KG) 2840
Battery
No. of battery groups 12
Rated Voltage (V) 72
Transmission System
Hydraulic System
Motor No. YQP5-72AF-48P
Voltage (V) 72
Power (W) 5000
Displacement (Ml/R) 15
rotating speed (R/Min) 2000
Walking System
Motor No. YQP4-72A1-48P
Voltage (V) 72
Power (W) 4000x2
rotating speed (R/Min) 2988
Tyres
Type 29*12.50-15
Working pressure (Mpa) 0.3
Qty 4
Steering System
Type of Steering Hydraulic System Full Hydraulic Steering System
System Pressure (Mpa) 16
Type of Steering Pump Gear Pump
Steering Cylinder Bore (MM) Φ63-35
Qty (PC) 2
Braking System
Service Brake Drum Brake
Brake Drum (MM) 240
Parking Brake Drum Brake
Dumping Cylinder-Bore (MM) Φ100-50
Lifting Cylinder-Bore (MM) Ø105-60
Lifting Cylinder Qty (PC) 1
Oil Capacity
Hydraulic Oil Tank (L) 54
Brake Fluid (L) 0.8
