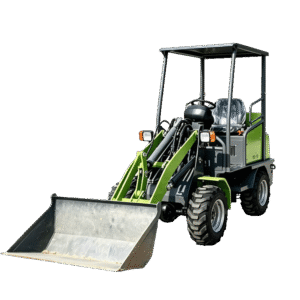

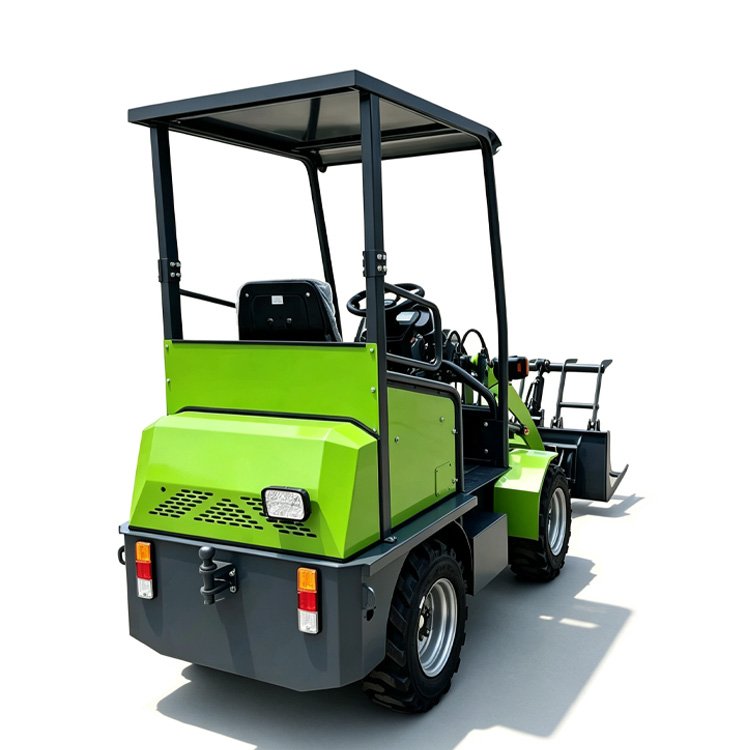

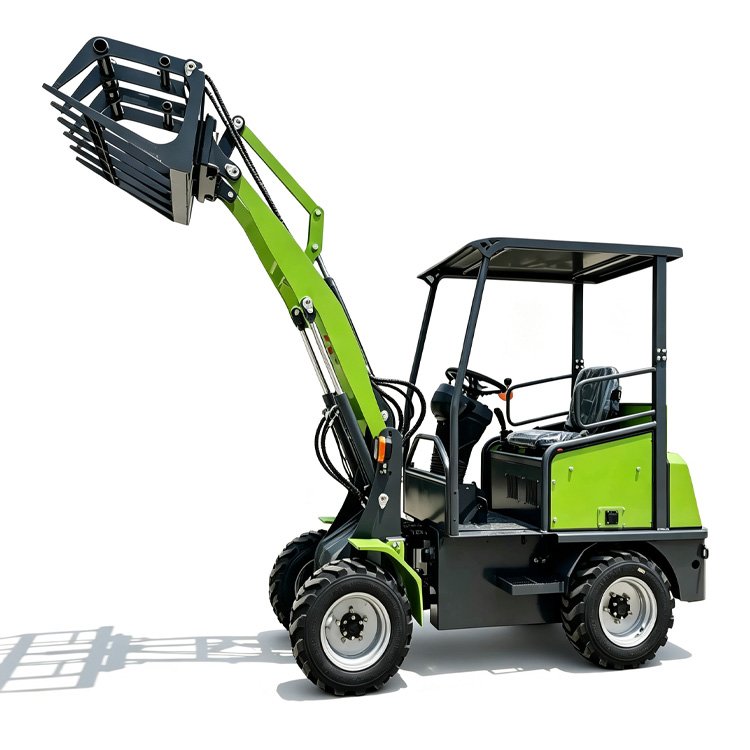

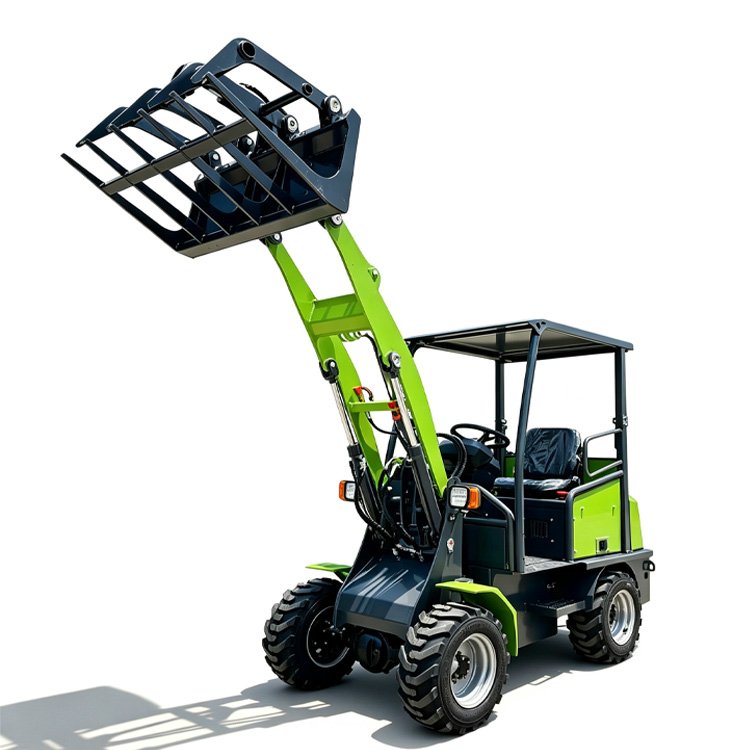

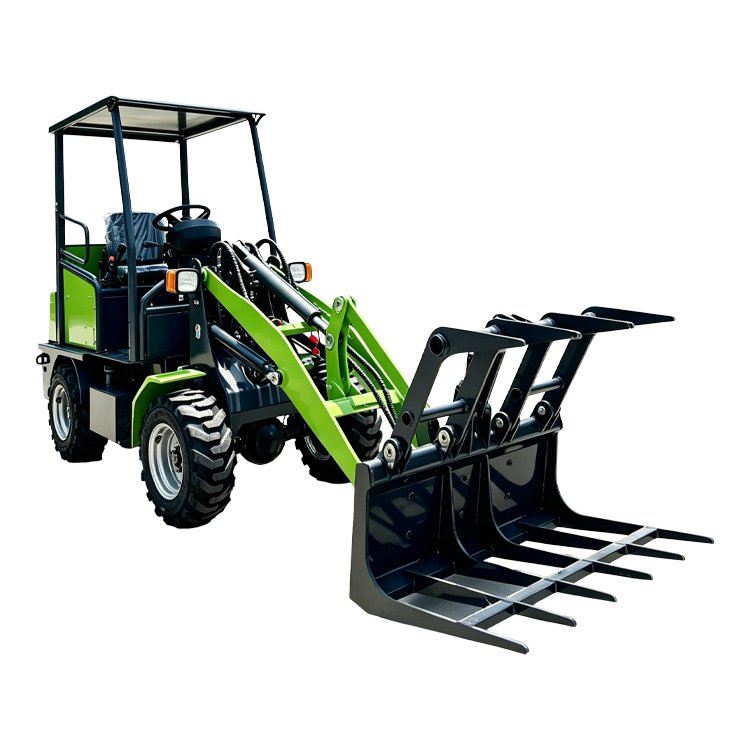

XHD400-XHDL400small electric articulated loader
XHD400-XHDL400small electric articulated loader
XHD400-XHDL400small electric articulated loader
XHD400-XHDL400small electric articulated loader
XHD400-XHDL400small electric articulated loader

XHD400/XHDL400

Specifications | Descriptions | Technical Parameters

XHD400-XHDL400small electric articulated loader
XHD400-XHDL400small electric articulated loader
XHD400-XHDL400small electric articulated loader
XHD400-XHDL400small electric articulated loader
XHD400-XHDL400small electric articulated loader

Specifications

Load Capacity

400kg

Lifting Height

2600mm

Dump Height

1600mm

Descriptions

Technical Parameters

FEATURE

SIZE / DETAILS

Model XHD400 / XHDL400
Main materials used for the vehicle Manganese steel
Total weight of the machine 1240kg
Loaded weight 400kg
Lifting height 2600mm
Discharge height 1600mm
Lifting time 7s
Discharge time 3.5s
Chopper bucket size 1050*680mm
Chopper bucket material Manganese steel
External dimensions (length * width * height) 3260*1050*2130 (mm)
Wheel base 1450mm
Battery Type Lead-acid battery / Lithium-ion battery
Battery Parameters 60/160Ah | 64V/150Ah or 180Ah
Maximum battery life (continuous operating duration) 5–8 hours
Charging interval 8 hours
Hydraulic motor power 3KW*1
Power of the drive motor 4KW*1
Handle Electronically controlled integrated system
Turn Fluid-link steering
Tire Type 23*8.5-12
Running speed (High speed) 0–14.5KM/h
Running speed (Low speed) 0–8KM/h
Appearance Integrated Liquid Crystal
Driving Method All-Wheel Drive
