1. Rops & Fops Cabin, more safe.
2. Top glass for front window, have a better view to check the front boom work.
3. Hydrostatic Travel System,powerful and stable in power output.
4. Simple rear axle sensor type force limit safety system for extreme working conditions.
5. Hydraulic wet brake system for reliable brake and safety travelling.
6. Four-way electric proportional multi-way valve and an electric proportional joystick to achieve better precise control and convenient operation.





Load Capacity
500kgLifting Height
2600mmDump Height
1600mm
The four wheels remain in constant contact with the ground, enabling the machine to have maximum traction and also providing it with unique maneuverability.

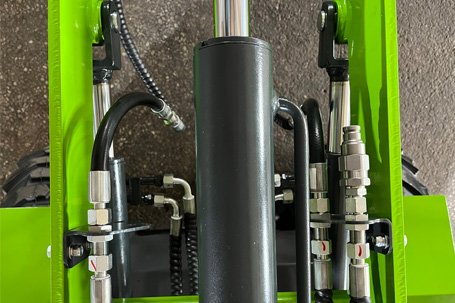

Always install sturdy lifting cylinders in all wheel loader models. This ensures that the load is optimally distributed to the loading arm. Moreover, the entire loading system also gains stability.

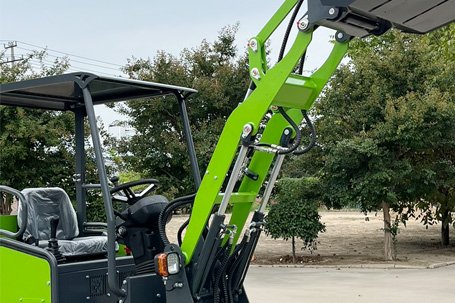

The hydraulic parallel connecting rods ensure that the equipment is in a horizontal position.

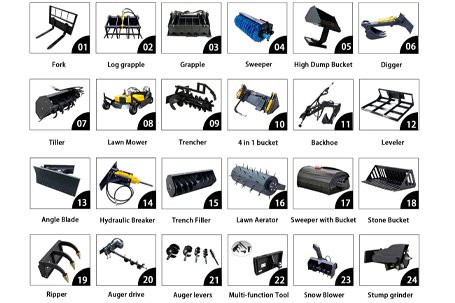

Turn your device into a multi-purpose work tool: Xinghang offers a variety of attachments for you to choose from

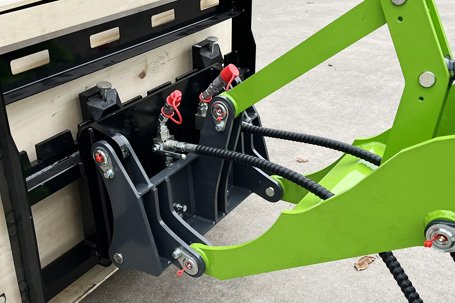

Thanks to the hydraulic quick change system, attachments can be easily and conveniently swapped. This way, your machine can be put back into service immediately. This improves production efficiency and profitability. Tool changes are done manually by hand, eliminating misoperation. At StarAirlines, safety always comes first!

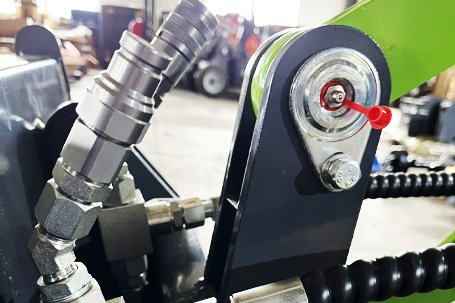

Regularly adding lubricant to all of the machine's lubrication points is crucial for ensuring the equipment is maintained properly and efficiently, as well as for keeping the machine's value. At Xinghang, the lubrication service points are set up in easy-to-access locations to save time and make the work more convenient.
| Model | XHD500 / XHDL500 |
| Main materials used for the vehicle | Manganese steel |
| Total weight of the machine | 1240kg |
| Loaded weight | 500kg |
| Lifting height | 2600mm |
| Discharge height | 1600mm |
| Lifting time | 7s |
| Discharge time | 3.5s |
| Chopper bucket size | 1050*680mm |
| Chopper bucket material | Manganese steel |
| External dimensions (length * width * height) | 3260*1050*2130 (mm) |
| Wheel base | 1450mm |
| Battery Type | Lead-acid battery / Lithium-ion battery |
| Battery Parameters | 60V/160Ah | 64V/150Ah or 180Ah |
| Maximum battery life (continuous operating duration) | 5–8 hours |
| Charging interval | 8 hours |
| Hydraulic motor power | 3KW*1 |
| Power of the drive motor | 4KW*1 |
| Handle | Electronically controlled integrated system |
| Turn | Fluid-link steering |
| Tire Type | 23*8.5-12 |
| Running speed (High speed) | 0–14.5KM/h |
| Running speed (Low speed) | 0–8KM/h |
| Appearance | Integrated Liquid Crystal |
| Driving Method | All-Wheel Drive |
