1.Zero-emission & low-noise — Pure electric drive, eco-friendly and quiet, ideal for indoor and confined-space work.
2.Dual-motor 4WD — Two 3kW flat-wire motors with all-weather four-wheel drive, powerful, efficient and reliable.
3.Smart LCD dashboard — CAN bus display of battery level, speed and RPM; built-in fault-code self-diagnosis.
4.24 interchangeable attachments — Fork, grapple, sweeper, breaker and more — one machine for many jobs.
5.Multiple battery options — LiFePO4 (64V/180Ah or 150Ah) or 60V/160Ah lead-acid battery available.
6.Integrated control handle — Drive, speed shift and lifting all in one lever — intuitive and efficient operation.





Load Capacity
500kgLifting Height
2600mmDump Height
1600mm
The four wheels remain in constant contact with the ground, enabling the machine to have maximum traction and also providing it with unique maneuverability.
Always install sturdy lifting cylinders in all wheel loader models. This ensures that the load is optimally distributed to the loading arm. Moreover, the entire loading system also gains stability.
The hydraulic parallel connecting rods ensure that the equipment is in a horizontal position.
Turn your device into a multi-purpose work tool: Xinghang offers a variety of attachments for you to choose from
Thanks to the hydraulic quick change system, attachments can be easily and conveniently swapped. This way, your machine can be put back into service immediately. This improves production efficiency and profitability. Tool changes are done manually by hand, eliminating misoperation. At StarAirlines, safety always comes first!
Regularly adding lubricant to all of the machine's lubrication points is crucial for ensuring the equipment is maintained properly and efficiently, as well as for keeping the machine's value. At Xinghang, the lubrication service points are set up in easy-to-access locations to save time and make the work more convenient.

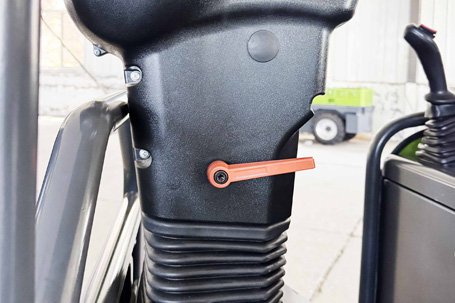

The steering wheel can be adjusted individually according to the operator's preferences, ensuring that each operator can use the machine comfortably and without fatigue in an ergonomic way.
The joystick fits snugly and comfortably in your hand, while remaining stable and responsive to control. This way, you can always have full command over the machine and its key functions.

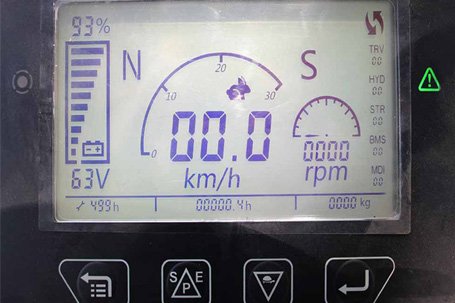

This vehicle uses a CAN bus to communicate with the digital dashboard, allowing it to accurately show voltage, battery level, driving speed, and fuel pump RPM in real time. It also has warning prompts for wrong operations and can display fault codes.

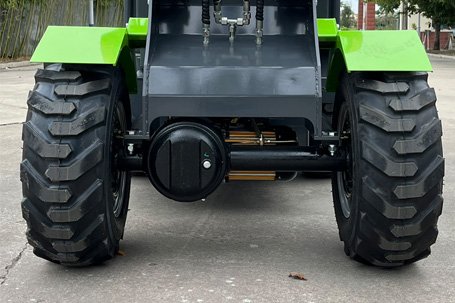

The axle uses a fully suspended reinforced design, ensuring a comfortable ride while also providing excellent load capacity.

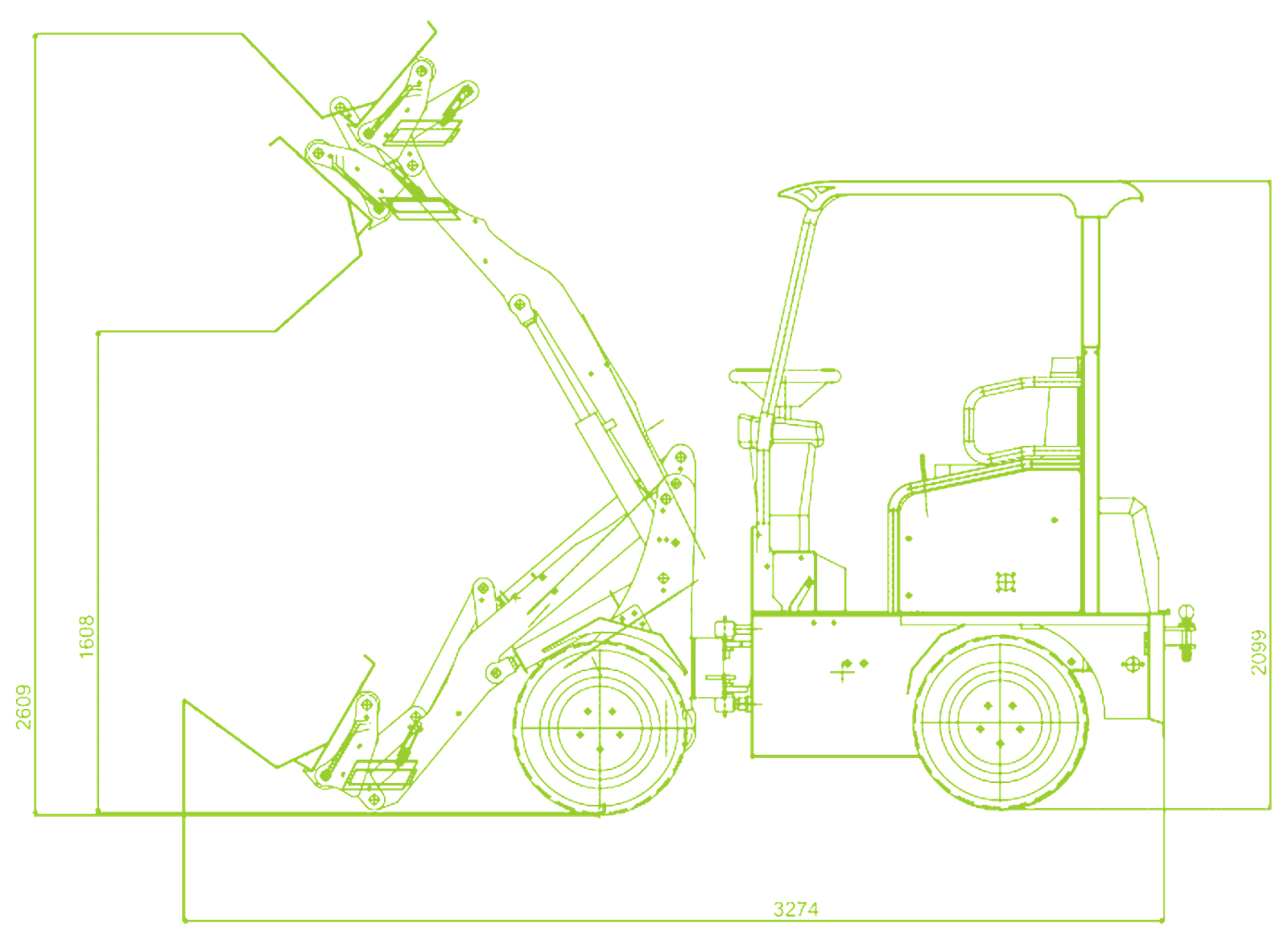

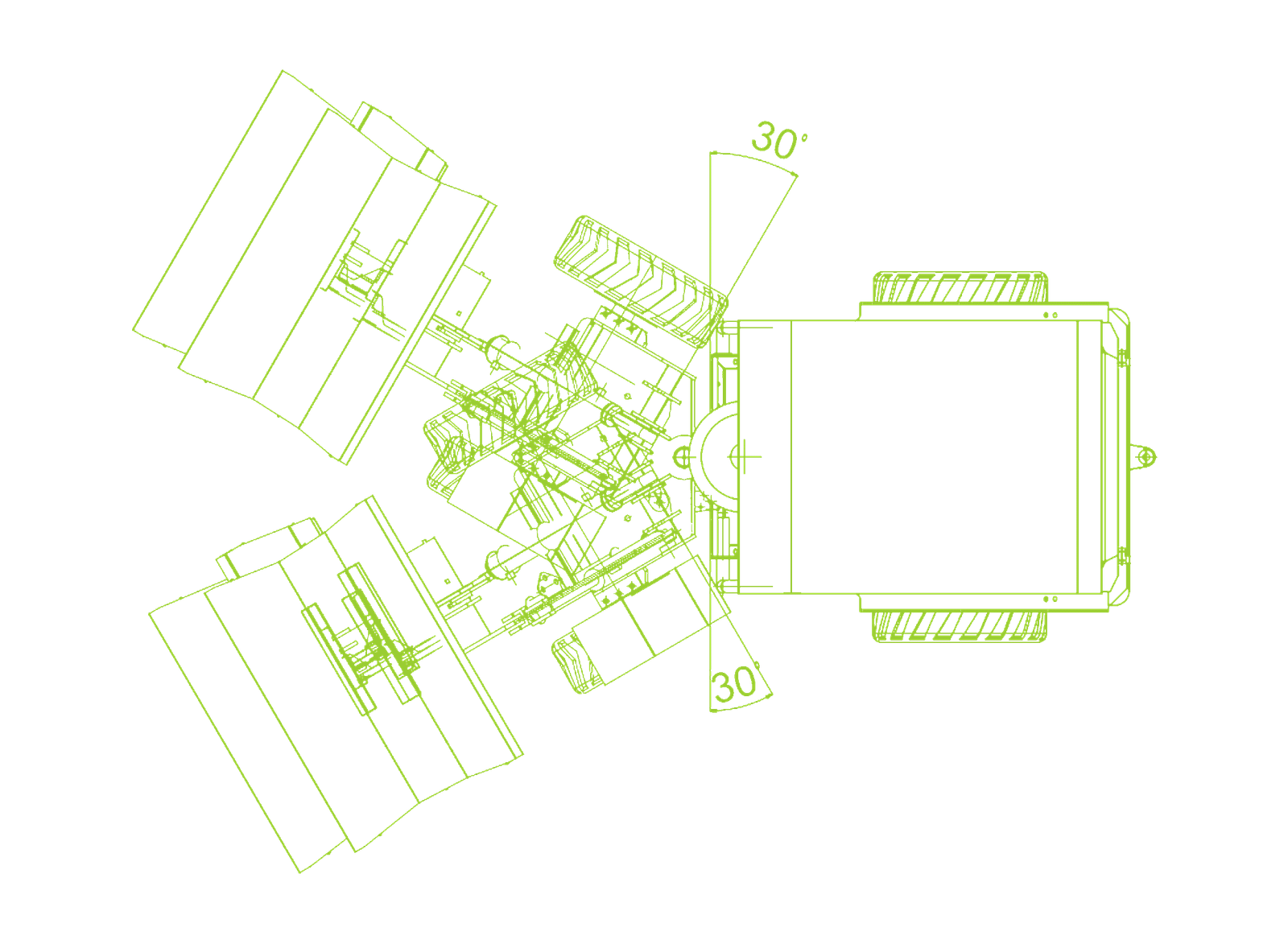

| Model | XHD500 / XHDL500 |
| Main materials used for the vehicle | Manganese steel |
| Total weight of the machine | 1240kg |
| Loaded weight | 500kg |
| Lifting height | 2600mm |
| Discharge height | 1600mm |
| Lifting time | 7s |
| Discharge time | 3.5s |
| Chopper bucket size | 1050*680mm |
| Chopper bucket material | Manganese steel |
| External dimensions (length * width * height) | 3260*1050*2130 (mm) |
| Wheel base | 1450mm |
| Battery Type | Lead-acid battery / Lithium-ion battery |
| Battery Parameters | 60V/160Ah | 64V/150Ah or 180Ah |
| Maximum battery life (continuous operating duration) | 5–8 hours |
| Charging interval | 8 hours |
| Hydraulic motor power | 3KW*1 |
| Power of the drive motor | 4KW*1 |
| Handle | Electronically controlled integrated system |
| Turn | Fluid-link steering |
| Tire Type | 23*8.5-12 |
| Running speed (High speed) | 0–14.5KM/h |
| Running speed (Low speed) | 0–8KM/h |
| Appearance | Integrated Liquid Crystal |
| Driving Method | All-Wheel Drive |
